Home > Products > DC cooling fans > 8038H24B

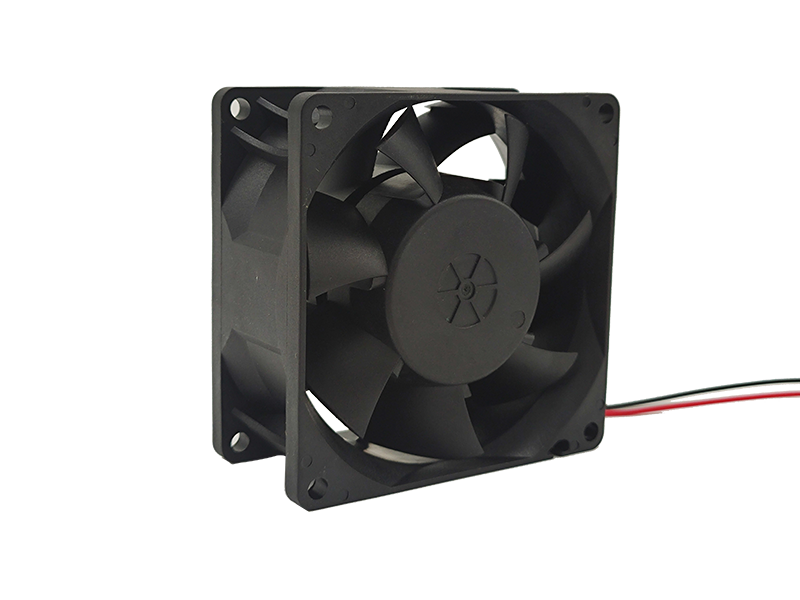

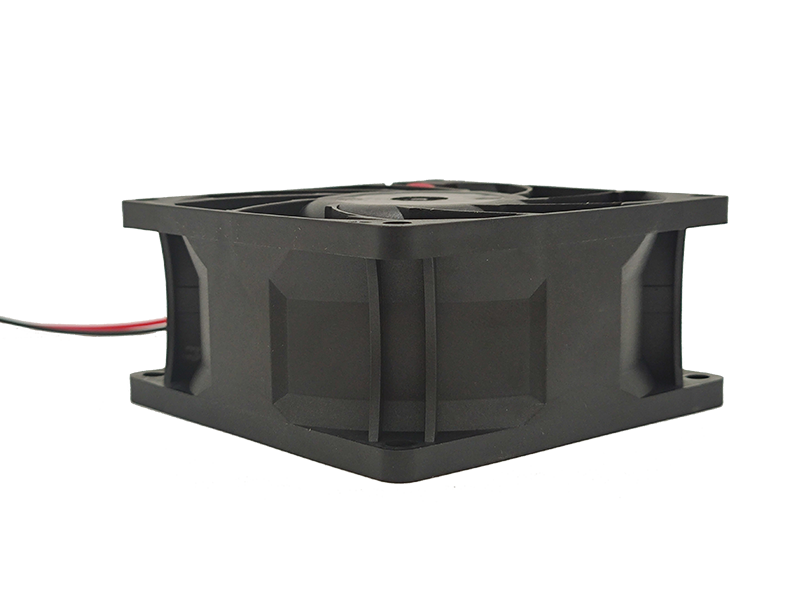

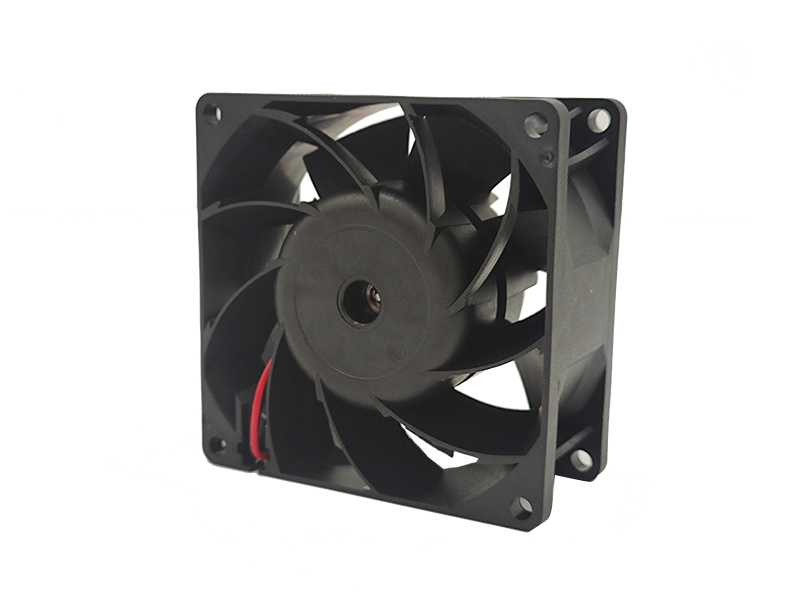

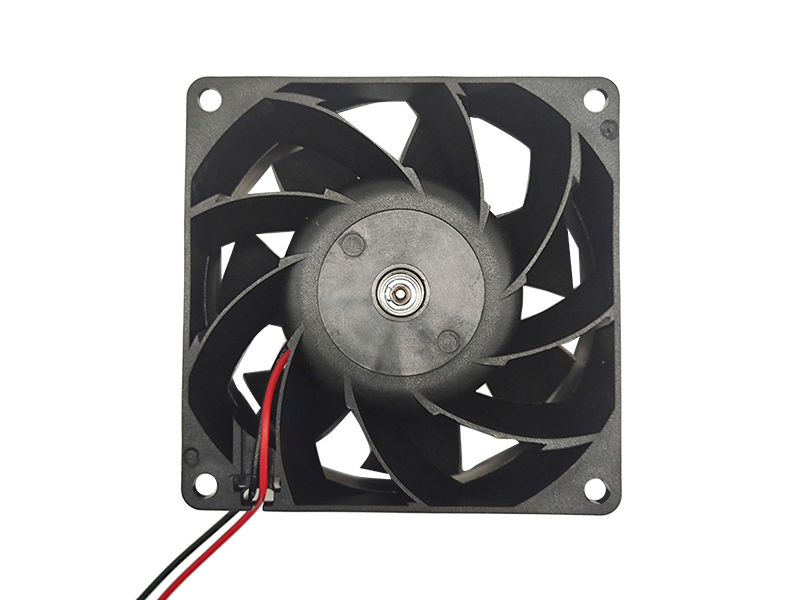

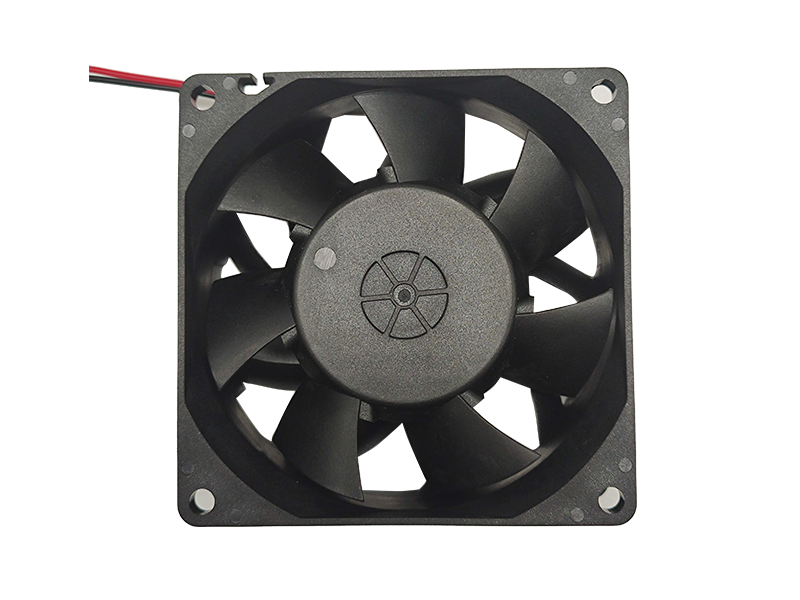

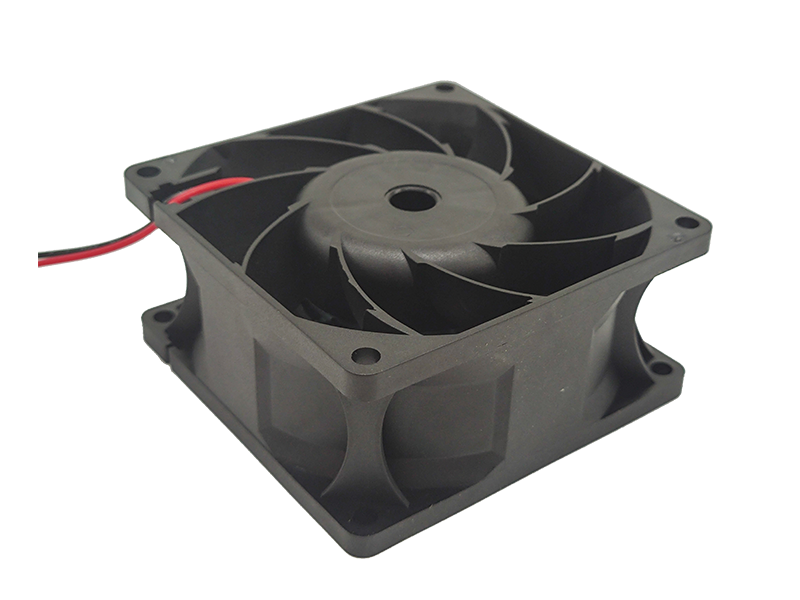

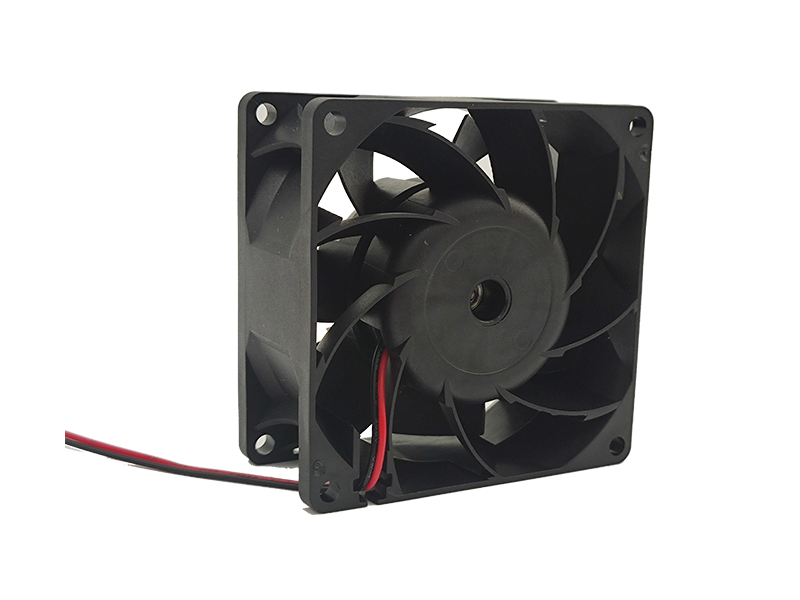

8038H24B

Cooling fan

■ Working voltage: 24V  Working current (A): 0.06-0.22

■ Speed (RPM): 6000-15000  Air volume (CFM): 0.16-1.12

■ Bearing type: ball bearing

■ Material: Fan blades and frame PBT (UL 94V-0)

■ Wire: UL certified wire; red wire positive (+); black wire negative (-)

■ Allowable ambient temperature range: -10℃~+70℃ (operation); -40℃~+70℃ (storage)

■ Allowable storage humidity range: 35% ~ 85%RH (operation); 35% ~ 85%RH (storage)

Note: The above data is for reference only. If you have special needs, please contact the sales staff directly. Thank you! Download product manual Contact Us
  • DC cooling fans_8038H24B
  • DC cooling fans_8038H24B
  • DC cooling fans_8038H24B
  • DC cooling fans_8038H24B
  • DC cooling fans_8038H24B
  • DC cooling fans_8038H24B
  • DC cooling fans_8038H24B
Specifications

* Warm reminder: The data on the web page are for reference only. If you have special needs, please contact the sales staff directly. Thank you!

  • Model
  • Voltage
    (VDC)
  • Current
    (Amp)
  • Power
    (Watts)
  • Speed
    (RPM)
  • Air Flow
    (CFM)
  • Pressure
    (mmH2O)
  • Noise Level
    (dBA)
  • 8038H48B
  • 48
  • 0.20
  • 9.60
  • 6500
  • 93.30
  • 24.50
  • 52.40
  • 8038M48B
  • 48
  • 0.13
  • 6.42
  • 5500
  • 71.40
  • 18.20
  • 48.00
  • 8038L48B
  • 48
  • 0.09
  • 4.32
  • 4500
  • 58.30
  • 13.10
  • 42.90
  • 8038H24B
  • 24
  • 0.38
  • 9.12
  • 6500
  • 83.30
  • 24.50
  • 52.40
  • 8038M24B
  • 24
  • 0.25
  • 6.00
  • 5500
  • 71.40
  • 18.20
  • 48.00
  • 8038L24B
  • 24
  • 0.16
  • 3.84
  • 4500
  • 58.30
  • 13.10
  • 42.90
  • 8038H12B
  • 12
  • 0.75
  • 9.00
  • 6500
  • 83.30
  • 24.50
  • 52.40
  • 8038M12B
  • 12
  • 0.48
  • 5.76
  • 5500
  • 71.40
  • 18.20
  • 48.00
  • 8038L12B
  • 12
  • 0.30
  • 3.60
  • 4500
  • 58.30
  • 13.10
  • 42.90
